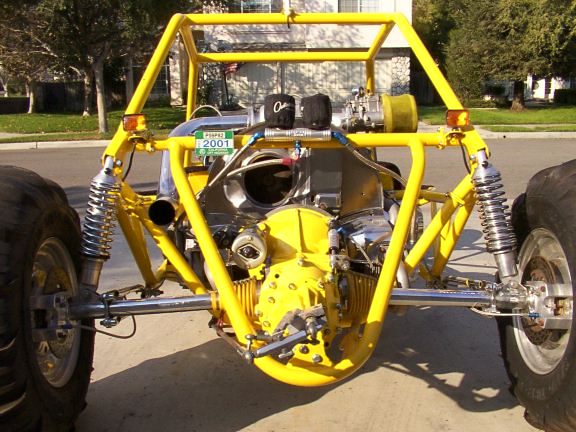

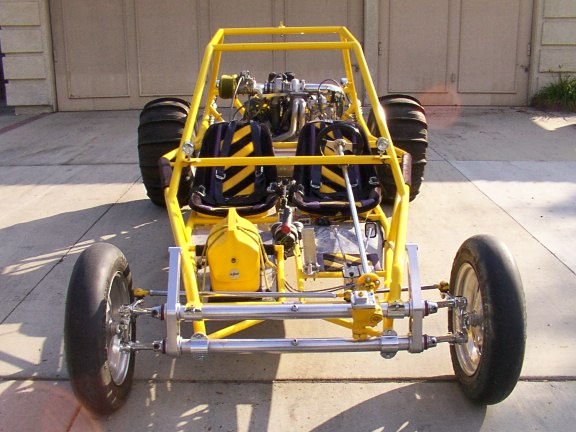

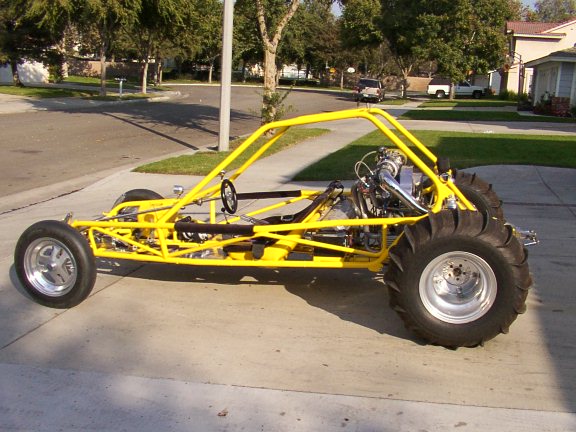

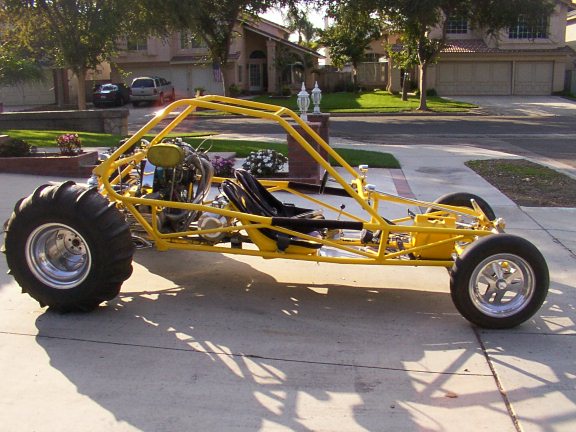

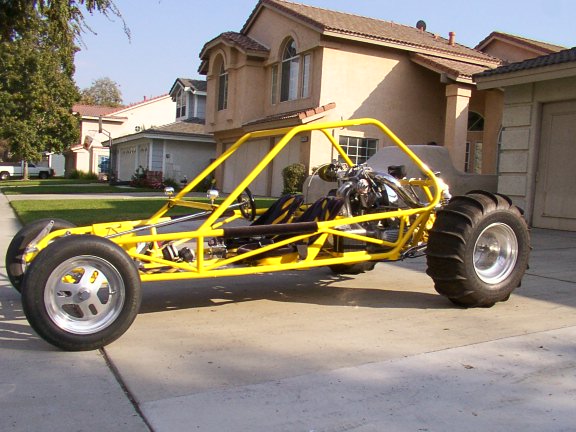

1776 Turbo Sand Rail|

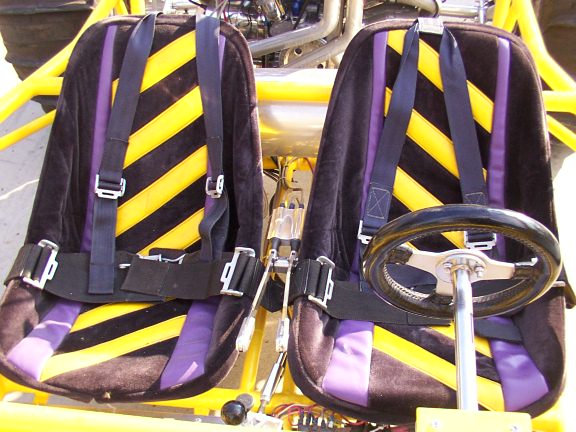

Fugitive frame, aluminum front beam, JAMAR hydralic clutch, jamar rear disk brakes, jamar turning brakes, jamar shifter,jamar gas pedal, jamar breather box, steel braided lines, autometer tach oil press& boost guage, laser lights, buggy whip, 4 point seat belts, 8 gallon gas tank, holley red pump and regulator, cut out front spindles with smoothie tires, rear paddle, 9.5 lacarra steering wheel, new battery, aluminum floors. Motor concist of 69x90.5, 69 welded crank, 90.5 cima pistons, 40x35.5 heads, dual springs, chromoly retainers,S/S valves, 8 dowel fly wheel, 4 puck clutch, 1700lb P/P, power pulley, fullflow, dual relief case, dog house cooler elctronic ign with 009 dist, T04B Turbo, 1-1/2 header, weber 40mm side draft,turbonetics wastegate with boost controller, motor made over 250HP @ 20psi of boost. Transmissing consist of 4.12 bus R/P, 3.78 superbeetle mainshaft, 2.06 second gear, 1.58 third gear and 1.31 4th, SAW axles, super diff, chromoly pinion plate. Motor & Trans have "ZERO" miles on rebuilt. |
|
 |
This is one of my favorite images |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
